Product Identification
Product NameSolar PV Cable (H1Z2Z2-K)
BrandTreasol
ModelSolar PV Cable
CategorySolar PV Cable
1 / 3
Solar PV Cable · Model Solar PV Cable

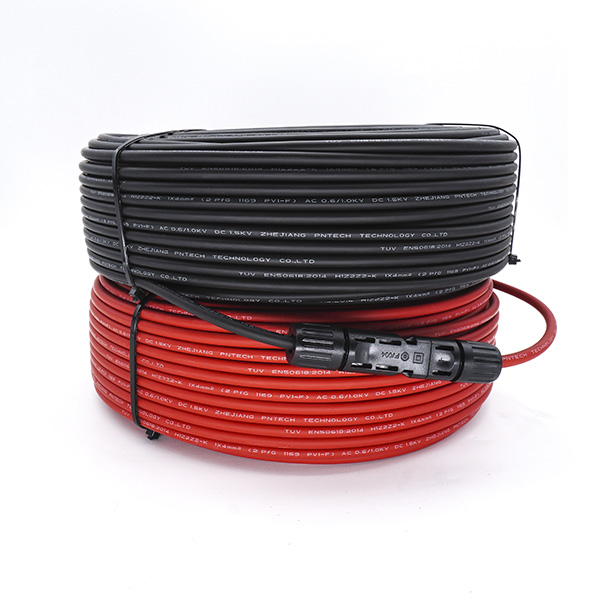

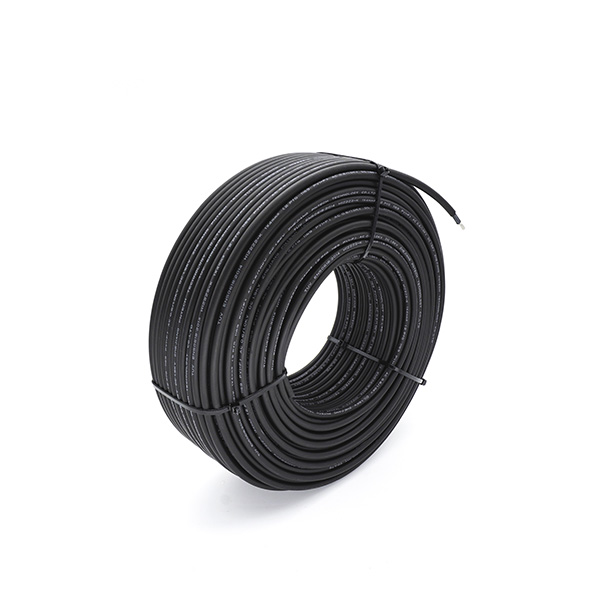

Solar PV Cable (H1Z2Z2-K)
Last updated: October 2026
Solar PV Cable (H1Z2Z2-K)｜1800V Lifespan & Warranty: 25 Years General Parameter: 2.5-35mm²
1.0/1.0 kV AC, 1.5 kV DC
2.5–16 mm²
-40 °C to +90 °C
BrandTreasol
ModelSolar PV Cable
Product TypeSolar PV Cable
Solar PV Cable (H1Z2Z2-K) at a glance
What is the Solar PV Cable (H1Z2Z2-K)?
Solar PV Cable (H1Z2Z2-K)｜1800V Lifespan & Warranty: 25 Years General Parameter: 2.5-35mm²
Voltage1.0/1.0 kV AC, 1.5 kV DC
Cable Range2.5–16 mm²
Product Overview
About the Solar PV Cable (H1Z2Z2-K)
H1Z2Z2-K solar cable to EN 50618, rated 1.0/1.0 kV AC, 1.5 kV DC: halogen-free XLPO insulation, tinned copper, UV and ozone resistant. Request a quote.
Key Features
Made to EN 50618 (H1Z2Z2-K); PV1-F to TÜV 2 PfG 1169 also available
Tinned copper class 5 conductor, flexible and corrosion resistant
1.5 kV DC rated for 1500 V DC string circuits
Cross-linked halogen-free insulation and sheath, low smoke
UV, ozone and weather resistant for long outdoor service life
Flame retardant to EN 60332-1-2
Available from 2.5 mm² to 16 mm² in red and black
PV-1x (PV1-F) — TÜV 2 PfG 1169, rated 1.8 kV DC. The table below covers the PV-1x type spectrum from 1.5 to 35 mm². PV1-F is a different type designation from the H1Z2Z2-K cable to EN 50618 / IEC 62930 in the specification table above: the two are assessed under different documents and carry different voltage ratings, so the figures must not be quoted interchangeably. Treasol supplies PV-1x where a project specification names TÜV 2 PfG 1169 rather than EN 50618 — state the standard your project requires when ordering. H1Z2Z2-K and PV1-F compared.
| PV-1x (PV1-F) Cable Specifications — TÜV 2 PfG 1169 | |||||||
|---|---|---|---|---|---|---|---|
| Type | Cross section (mm²) | Strand design (No. x mm) | Conductor diameter (mm) | Outer diameter (mm) | Conductor resistance (Ω/Km) | Rated voltage (VAC/DC) | Rated current (A) |
| PV-1x1.5mm² | 1.50 | 30x∅0.25 | 1.58 | 5.20 | 13.70 | 1000/1800 | 20 A |
| PV-1x2.5mm² | 2.50 | 49x∅0.25 | 2.05 | 5.40 | 8.21 | 1000/1800 | 30 A |
| PV-1x4.0mm² | 4.00 | 56x∅0.30 | 2.59 | 6.20 | 5.09 | 1000/1800 | 50 A |
| PV-1x6.0mm² | 6.00 | 84x∅0.30 | 3.42 | 7.00 | 3.39 | 1000/1800 | 70 A |
| PV-1x10mm² | 10.00 | 84x∅0.40 | 4.56 | 9.00 | 1.95 | 1000/1800 | 95 A |
| PV-1x16mm² | 16.00 | 128x∅0.40 | 5.60 | 10.30 | 1.24 | 1000/1800 | 105 A |
| PV-1x25mm² | 25.00 | 192x∅0.40 | 7.25 | 12.20 | 0.80 | 1000/1800 | 140 A |
| PV-1x35mm² | 35.00 | 276x∅0.40 | 8.74 | 13.80 | 0.57 | 1000/1800 | 170 A |
Technical Specifications
Solar PV Cable (H1Z2Z2-K) technical data
Electrical, mechanical, material and environmental specifications for product selection and engineering review.
Rated Voltage1.0/1.0 kV AC, 1.5 kV DCPhotovoltaic DC system
Cable Size2.5–16 mm²Supported solar cable
Temperature-40 °C to +90 °COperating range
| Parameter | Value |
|---|---|
| Electrical | |
| Type Designation | H1Z2Z2-K / PV1-F |
| Rated Voltage | 1.0/1.0 kV AC, 1.5 kV DC |
| Max. System Voltage | 1500 V DC |
| Sheath | Cross-linked halogen-free polyolefin |
| Halogen Free | EN 60754-1 / -2 |
| Ozone Resistance | EN 60811-2-1 |
| Colors | Red / Black |
| Materials & Cable | |
| Conductor | Tinned copper, class 5 (EN 60228) |
| Insulation | Cross-linked halogen-free polyolefin |
| Max. Conductor Temperature | +120 °C, 20,000 h |
| Cross Section | 2.5 / 4.0 / 6.0 / 10 / 16 mm² |
| Environmental | |
| Service Temperature | -40 °C ~ +90 °C |
| Flame Retardant | EN 60332-1-2 |
| Certification | |
| Standard | EN 50618 / TÜV 2 PfG 1169 |
Applications
Photovoltaic application scenarios
Solar PV Cable (H1Z2Z2-K) is suitable for residential, commercial, utility-scale and compatible solar energy storage connection applications.
Residential Solar PV
Reliable cable connections for rooftop solar systems and residential photovoltaic installations.
Commercial & Industrial PV
Suitable for commercial rooftop systems and larger distributed PV installations requiring high-current connections.
Utility-Scale Solar Power Plants
Designed for high-voltage PV systems and large-scale solar installations where reliable outdoor connections are essential.
Solar Energy Storage
Can be used in compatible solar energy and energy storage connection applications according to system requirements.
