Product Identification
Product NameHTX-6/N PV String Wiring Harness
BrandTreasol
ModelHTX-6/N STRING
CategoryWiring Harness
1 / 3
Wiring Harness · Model HTX-6/N STRING

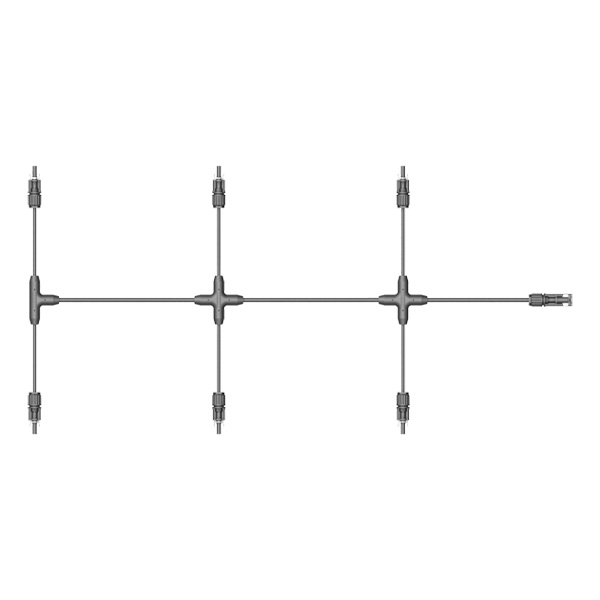

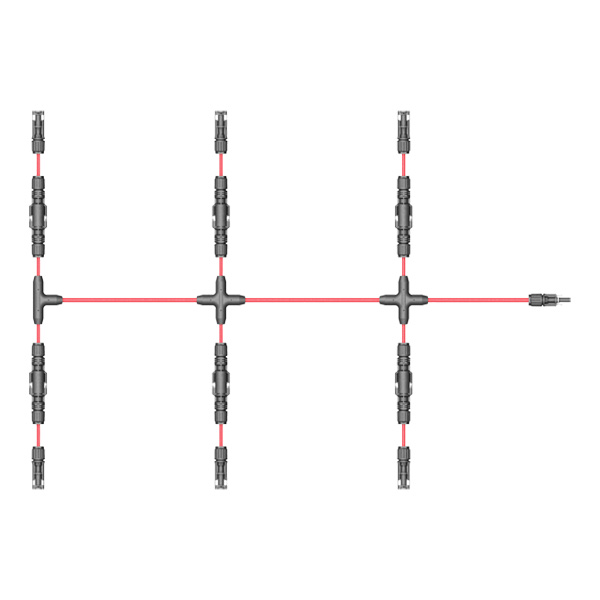

HTX-6/N PV String Wiring Harness
Last updated: October 2026
HTX-6/N is a PV string wiring harness designed for solar photovoltaic applications, with a current rating of 1–30A and voltage configurations up to 1500 V according to the applicable certification. It provides IP68 protection, <0.5 mΩ contact resistance and an operating temperature range of -40 °C to +85 °C.
1500 V DC
30 A
IP68
<0.5 mΩ
-40 °C~ + +85 °C
BrandTreasol
ModelHTX-6/N STRING
Product TypeWiring Harness
HTX-6/N PV String Wiring Harness at a glance
What is the HTX-6/N PV String Wiring Harness?
HTX-6/N is a PV string wiring harness designed for solar photovoltaic applications, with a current rating of 1–30A and voltage configurations up to 1500 V according to the applicable certification. It provides IP68 protection, <0.5 mΩ contact resistance and an operating temperature range of -40 °C to +85 °C.
Voltage1500 V DC
Current30 A
ProtectionIP68
Product Overview
About the HTX-6/N PV String Wiring Harness
HTX-6/N PV string wiring harness for solar photovoltaic applications: 1–30 A, IP68, up to 1500 V. Request a quote.
HTX-6/N PV String Wiring Harness
HTX-6/N is a wiring harness designed for electrical connections in photovoltaic string applications. It provides a pre-assembled connection between PV components and helps simplify cable installation within the specified system configuration.
The harness is rated for 1–30A and supports voltage configurations up to 1500 V, depending on the applicable certification and product configuration. It provides IP68 protection, with a specified contact resistance of less than 0.5 mΩ.
With an operating temperature range of -40 °C to +85 °C, HTX-6/N is designed for outdoor photovoltaic applications where the wiring harness is exposed to varying environmental conditions.
This model is part of the solar wire harness range. That page covers topologies, conductor sizing, voltage-drop checks, lead times and minimum order quantities.
Technical Specifications
HTX-6/N PV String Wiring Harness technical data
Electrical, mechanical, material and environmental specifications for product selection and engineering review.
Rated Voltage1500 V DCPhotovoltaic DC system
Rated Current30 AMaximum rated current
ProtectionIP68Outdoor protection rating
Temperature-40 °C~ + +85 °COperating range
| Parameter | Value |
|---|---|
| Electrical | |
| Rated Current | 1-30 A |
| Rated Voltage | 1000 V / 1500 V (TUV) 600 V / 1500 V (UL) |
| Test Voltage | 8 kV/16 kV (TUV50HZ, 1 min)| |
| Contact Resistance | <0.5 mΩ |
| Safety Class | II |
| Environmental | |
| Degree Of Protection | IP 68 |
| Ambient Temperature Range | -40 °C~ + +85 °C |
| Flame Class | UL 94 V-0 |
Applications
Photovoltaic application scenarios
HTX-6/N PV String Wiring Harness is suitable for residential, commercial, utility-scale and compatible solar energy storage connection applications.
Residential Solar PV
Reliable cable connections for rooftop solar systems and residential photovoltaic installations.
Commercial & Industrial PV
Suitable for commercial rooftop systems and larger distributed PV installations requiring high-current connections.
Utility-Scale Solar Power Plants
Designed for high-voltage PV systems and large-scale solar installations where reliable outdoor connections are essential.
Solar Energy Storage
Can be used in compatible solar energy and energy storage connection applications according to system requirements.
FAQ
HTX-6/N PV String Wiring Harness frequently asked questions
Technical answers for product selection, cable matching and PV connection design.
What Is a PV String Wiring Harness?
A PV string wiring harness is a pre-assembled cable and connector assembly used to establish electrical connections within photovoltaic string circuits.
In a solar PV system, multiple photovoltaic modules can be connected together to form a string. A suitable wiring harness provides the electrical connection between the relevant components while helping organize and simplify the cable installation.
The current, voltage, cable size and connector configuration of a PV string harness should be selected according to the electrical requirements of the PV module and the complete system.
