Product NameHTX-3101BxA PV Wiring Harness
BrandTreasol
ModelHTX-3101BxA
CategoryWiring Harness
1 / 2
Wiring Harness · Model HTX-3101BxA

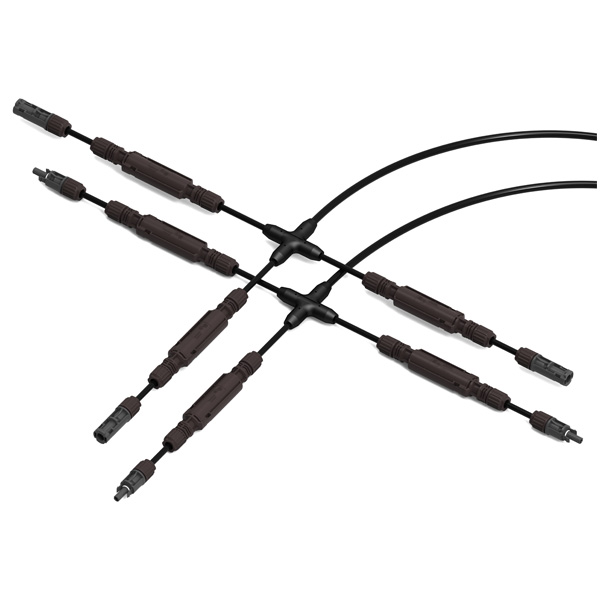

HTX-3101BxA PV Wiring Harness
Last updated: October 2026
HTX-3101BxA is a solar PV wiring harness with a 1–30A rated current, IP68 protection and Ø4mm pin dimensions. It features <0.5 mΩ contact resistance and an operating temperature range of -40 °C to +85 °C for photovoltaic applications.
1500 V DC
30 A
IP68
<0.5 mΩ
-40 °C to +85 °C
BrandTreasol
ModelHTX-3101BxA
Product TypeWiring Harness
HTX-3101BxA PV Wiring Harness at a glance
What is the HTX-3101BxA PV Wiring Harness?
HTX-3101BxA is a solar PV wiring harness with a 1–30A rated current, IP68 protection and Ø4mm pin dimensions. It features <0.5 mΩ contact resistance and an operating temperature range of -40 °C to +85 °C for photovoltaic applications.
Voltage1500 V DC
Current30 A
ProtectionIP68
Product Overview
About the HTX-3101BxA PV Wiring Harness
HTX-3101BxA MC4-compatible PV wiring harness for solar photovoltaic applications: 1–30 A, IP68, Ø4 mm pins. Request a quote.
HTX-3101BxA Solar PV Wiring Harness
HTX-3101BxA is a wiring harness designed for electrical connection applications in photovoltaic systems. It provides a pre-assembled connection interface for compatible PV components and is designed for outdoor operating conditions.
The harness has a rated current of 1–30A and uses Ø4mm pins. It provides a specified contact resistance of less than 0.5 mΩ and IP68 protection.
The product is specified for an ambient temperature range of -40 °C to +85 °C and uses a UL94-V0 flame-classified construction with Safety Class II.
This model is part of the solar wire harness range. That page covers topologies, conductor sizing, voltage-drop checks, lead times and minimum order quantities.
Technical Specifications
HTX-3101BxA PV Wiring Harness technical data
Electrical, mechanical, material and environmental specifications for product selection and engineering review.
Rated Voltage1500 V DCPhotovoltaic DC system
Rated Current30 AMaximum rated current
ProtectionIP68Outdoor protection rating
Temperature-40 °C to +85 °COperating range
| Parameter | Value |
|---|---|
| Electrical | |
| Rated Current | 1-30 A |
| Rated Voltage | 1000 V / 1500 V (TUV) 500 V / 1500 V (UL) |
| Test Voltage | 8 kV / 16 kV (TUV50HZ, 1min) | |
| Contact Resistance | <0.5 mΩ |
| Safety Class | II |
| Materials & Cable | |
| Pin Dimensions | Ø4mm |
| Environmental | |
| Degree Of Protection | IP 68 |
| Ambient Temperature Range | -40 °C~ +85 °C |
| Flame Class | UL 94 V-0 |
Compatibility
MC4-compatible PV connection design
HTX-3101BxA PV Wiring Harness is designed to match commonly used photovoltaic connection systems and provide secure electrical and mechanical connections.
Connector compatibility
Model: HTX-3101BxA
Product Type: Wiring Harness
Compatibility Type: MC4-compatible solar cable connector
For safety and certification compliance, connectors from the same manufacturer and approved connector combinations should be used within the same PV connection system. Mixing connectors from different manufacturers should only be considered when compatibility has been verified and permitted by the applicable certification requirements.
