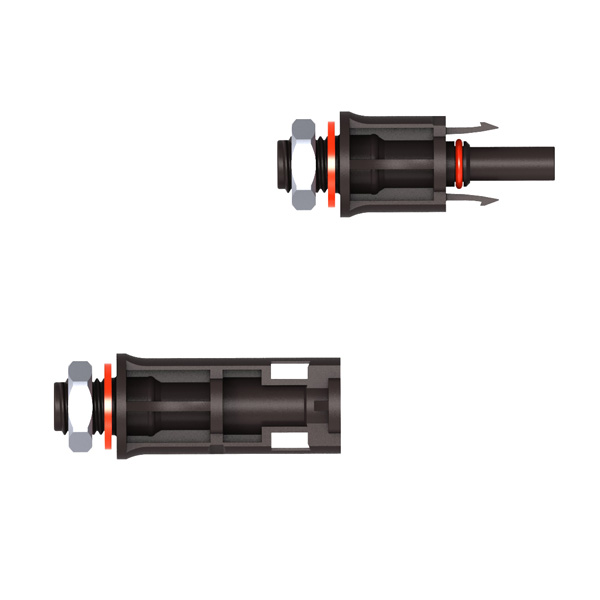

CN4U-P Solar Panel Connector
CN4U-P is a high-performance solar panel connector designed for reliable photovoltaic (PV) module connections. Rated up to 1500V DC and 52A, it features IP68 protection, low contact resistance, UV-resistant and anti-aging housing, and a Ø4 mm contact design. Compatible with 2.5–6.0 mm² solar cables, it is suitable for residential, commercial and utility-scale PV installations.
Product Details
CN4U-P Solar Panel Connector
The CN4U-P Solar Panel Connector is designed for reliable electrical connections between photovoltaic (PV) modules and solar cables. With a rated voltage of up to 1500V DC and a maximum rated current of 52A, it is suitable for modern high-voltage solar PV systems.
The connector features IP68 protection, low contact resistance of less than 5mΩ, and a UV-resistant, anti-aging housing designed for long-term outdoor operation. Its Ø4 mm contact design supports commonly used PV cable sizes from 2.5 mm² to 6.0 mm².
CN4U-P is suitable for residential rooftop solar systems, commercial and industrial PV installations, distributed photovoltaic systems and utility-scale solar projects.
Key Features
- 1500V DC rated voltage for high-voltage photovoltaic systems
- 52A maximum current rating for high-current PV applications
- IP68 protection for demanding outdoor solar environments
- Low contact resistance below 5mΩ for reliable electrical transmission
- UV-resistant and anti-aging housing for long-term outdoor exposure
- Ø4 mm contact design for secure electrical connection
- Supports 2.5 / 4.0 / 6.0 mm² solar cables
- -40°C to +85°C operating temperature range
- UL94-V0 flame-retardant insulation
- Safety Class II design
Technical Data
| Product Type | Solar Panel Connector |
| Model | CN4U-P |
| Rated Voltage | 1500V DC |
| Rated Current | 52A Max. |
| Contact Resistance | <5mΩ |
| Protection Rating | IP68 |
| Insulation Material | PPE / PA66 |
| Contact Material | Tin-Plated Copper |
| Test Voltage | 12kV, 50Hz, 1 min (TÜV) |
| Operating Temperature | -40°C to +85°C |
| Flame Class | UL94-V0 |
| Safety Class | II |
| Contact / Pin Size | Ø4 mm |
| Cable Size | 2.5 / 4.0 / 6.0 mm² |
| Cable Gauge | 14 / 12 / 10 AWG |
| Certification | TÜV / UL |
Solar Cable Compatibility
CN4U-P supports commonly used photovoltaic cable sizes of 2.5 mm², 4.0 mm² and 6.0 mm², corresponding to approximately 14 AWG, 12 AWG and 10 AWG.
The appropriate cable size should be selected according to the PV system current, installation conditions, cable specifications and applicable electrical requirements.
Before installation, ensure that the cable, connector, crimping method and mating connector are compatible with the specified CN4U-P configuration.
MC4 Compatibility
The CN4U-P Solar Panel Connector is designed as an MC4-compatible PV connector for photovoltaic module and solar cable connections. It is developed to work with compatible MC4-type connection systems and provide a secure electrical and mechanical connection for solar PV applications.
CN4U-P supports up to 1500V DC and 52A, with IP68 protection and contact resistance below 5mΩ, making it suitable for demanding outdoor photovoltaic installations.
However, MC4 compatibility should not be determined by physical fit alone. Electrical, mechanical and certification compatibility must also be considered. For safe and reliable PV system installation, mating connectors should be verified as an approved and compatible combination.
When replacing or matching an existing connector, we recommend confirming the connector manufacturer, model, electrical specifications and certification requirements before installation. TREASUN can provide technical information and compatibility confirmation for specific connector combinations.
Applications
Residential Solar PV
Suitable for rooftop photovoltaic systems where reliable module-to-cable connections are required.
Commercial & Industrial Solar
Designed for commercial and industrial PV installations requiring durable outdoor electrical connections.
Utility-Scale Solar
Suitable for large photovoltaic power plants using high-voltage PV connection systems.
Distributed PV Systems
Provides a reliable connection solution for distributed solar generation projects.
Solar Energy Storage
Suitable for compatible solar PV and energy storage applications according to system design requirements.
Why Choose CN4U-P Solar Panel Connector?
High-Voltage PV Performance
1500V DC rated voltage for modern high-voltage photovoltaic systems.
High Current Capacity
Up to 52A maximum current rating for demanding PV applications.
Reliable Outdoor Protection
IP68 protection and UV-resistant, anti-aging housing for outdoor solar environments.
Low Contact Resistance
Contact resistance below 5mΩ helps support efficient electrical power transmission.
Common PV Cable Sizes
Compatible with 2.5–6.0 mm² solar cables commonly used in photovoltaic installations.
International Certification
TÜV and UL rated configurations support requirements for international PV markets.
