Utility-scale arrays now run at 1500 V DC as a matter of course. Residential and small commercial systems mostly stay at 1000 V. The connector rating follows the system decision, not the other way around, and knowing what a 1500 V rating actually changes (and what it does not) keeps you from paying for spec you don't need, or installing hardware that won't pass inspection.
This article covers where the engineering benefit comes from, which standards govern 1500 V connectors, and how to pick the right voltage class for a given project.
1. What "1500 V" Actually Means
A 1500 V PV connector is rated for a maximum system voltage of 1500 V DC. That is a voltage rating only. It has nothing to do with the connector's current rating, which for MC4-type contacts typically lands between 35 and 65 A. What the number describes is how much continuous potential difference the insulation and the creepage and clearance distances can take in outdoor service.
The connector's job is the same at either voltage class: make a low-resistance, weatherproof, securely locked joint between the cable and the module, or between string components. A 1500 V connector on its own saves no energy. The benefit only shows up when the whole system runs at the higher voltage.
2. Where the Benefit Comes From
| Parameter | 1000 V system | 1500 V system |
|---|---|---|
| Maximum system voltage (IEC 62852) | 1000 V DC | 1500 V DC |
| Qualification test voltage | 8 kV AC for 1 minute | 12 kV AC for 1 minute |
| Modules per string | Baseline | Up to roughly 50% more |
| String current at the same array power | Baseline | About one third lower |
| Cable cross-sections in normal use | 4 mm² and 6 mm² | 4 mm², 6 mm² and 10 mm² |
| Balance-of-system cost | More copper, more combiner boxes | Fewer strings, less copper |
For a fixed output power, raising system voltage lowers current (P = V × I). Lower current means lower I²R loss in the DC cabling, so more of what the array generates reaches the inverter, or the same loss is accepted over a longer run. It also means smaller or fewer conductors for a given loss budget.
That efficiency gain is real but small. The bigger and much better documented gain sits in the balance of system (BOS):
- At 1500 V a string can carry roughly 30+ modules versus about 20 at 1000 V, depending on module Voc and climate derating.
- Fewer strings mean fewer combiner boxes, fewer inverter DC inputs, less DC cable, and fewer connectors to install and torque-check.

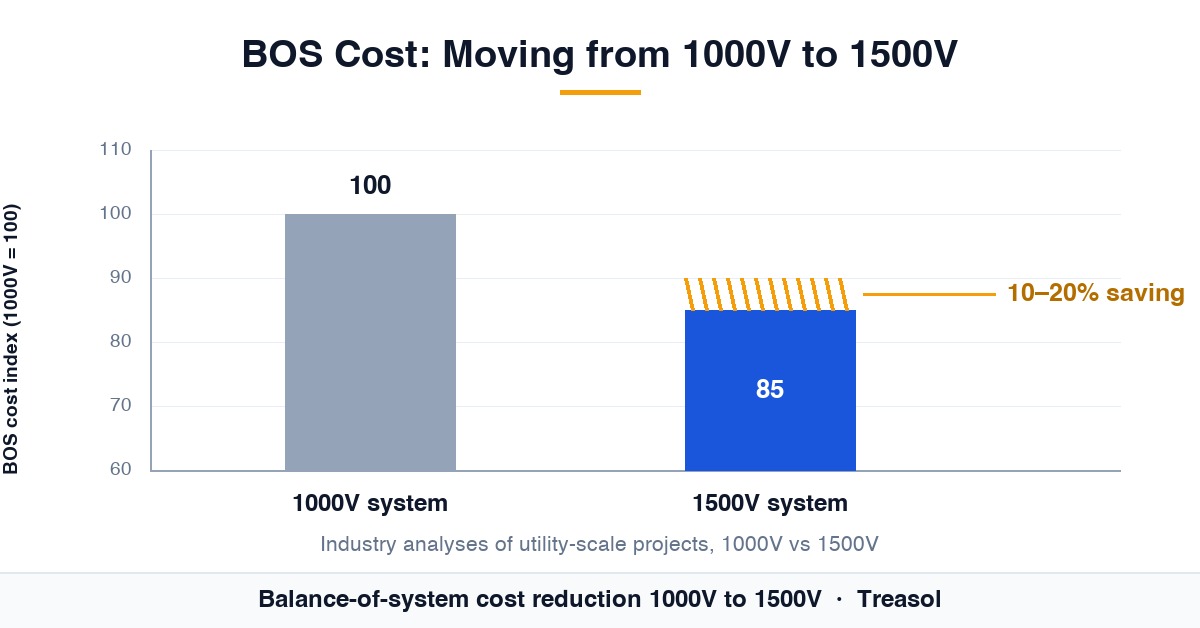

- Industry analyses of utility-scale projects commonly put the BOS saving at 10–20% when moving from 1000 V to 1500 V, and most of that comes from hardware and labor, not from the efficiency gain.

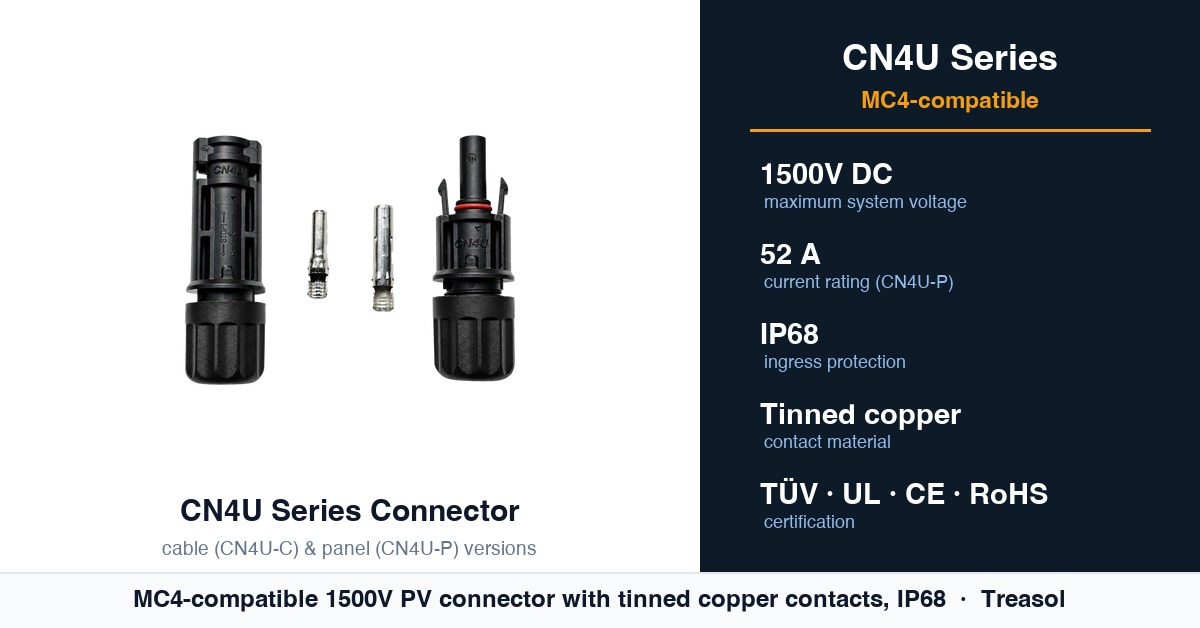

Treasol supplies MC4-compatible connectors rated to 1500 V DC: the CN4U-C cable connector and CN4U-P panel connector, built for IP68 service with tinned-copper contacts.
3. Standards and Certification
Connector selection gets verified against the applicable standards, not against the voltage number printed on the housing:
- IEC 62852 — connectors for photovoltaic systems, the key connector standard.
- UL 6703 — photovoltaic connectors for the North American market.
- IEC 62930 / EN 50618 (H1Z2Z2-K) and EN 50521 — the DC cable the connector terminates.
- TÜV, UL, CE, RoHS — the certification marks carried by qualified manufacturers.
A 1500 V claim is only as good as the test report behind it. Treasol's 1500 V connectors are certified to TÜV, UL, CE, and RoHS and are documented in the MC4-compatible connector guide.
4. When 1000 V Is Still the Right Call
1500 V is not automatically better. On a residential or small commercial roof with short strings, the BOS savings never materialize, because there are too few strings to consolidate. 1000 V (or 600 V in some North American residential applications) is simpler and cheaper per connection.
Going to 1500 V also buys you stricter requirements: higher DC arc energy, isolation monitoring, and in some markets arc-fault protection (AFCI) and rapid shutdown. Those add cost and design burden that a small system doesn't recover.
The rule of thumb most designers use: specify 1500 V where string length, array size, and BOS reduction justify it, which means ground-mount fields, large C&I roofs, and any project where longer strings cut combiner and cabling cost. Keep 1000 V for everything else.
5. How to Select a 1500 V Connector
| Model | Type | Rated current | Rated voltage | Protection | Conductor cross-section |
|---|---|---|---|---|---|
| CN4U-C | Cable connector | 70 A max | 1500 V (TÜV and UL) | IP68 | 2.5 / 4 / 6 / 10 / 16 mm² |
| CN4U-P | Panel connector | 52 A max | 1500 V (TÜV and UL) | IP68 | 2.5 / 4 / 6 mm² |
| Branch Connector Series-2 | Branch connector | 60 A max at the output | 1500 V (TÜV and UL) | IP68 | Matched to the input cable |
| F4C-200-1085 | Fuse connector | 1–30 A | 1500 V (TÜV and UL) | IP68 | 2.5 / 4 / 6 / 10 mm² |
| D4B | Diode connector | 30 A | 1500 V | IP67 | Ø4 mm pin |
| F4C-212-1038 | Fuse connector | 1–30 A | 1000 V / 1100 V (TÜV), 600 V (UL) | IP68 | 2.5 / 4 / 6 / 10 mm² |
| D4A | Diode connector | 1–8 A | 1000 V (TÜV), 600 V (UL) | IP68 | Ø4 mm pin |
Whatever brand you shortlist, these are the parameters to check against the project:
- Voltage rating: 1500 V DC minimum for the target class.
- Current rating: match the string Isc × 1.25 safety factor. The CN4U-P, for example, is rated 52 A.
- Ingress protection: IP68 for outdoor PV duty.
- Contact material: tinned copper, for corrosion resistance over a 25-year service life.
- MC4 compatibility: confirm intermateability and use matched, certified contacts.
- Certification: TÜV / UL / CE / RoHS with valid test reports you can actually request.
Treasol's manufacturing process, from tooling and molding through automated assembly and inspection, is documented in the PV connector manufacturing overview.
6. Common Misconceptions
Four come up again and again in project discussions.
"1500 V connectors carry more current." They don't. 1500 V is a voltage rating; current is set by the contact design, which is why a 52 A connector can be rated 1500 V and a 65 A connector only 1000 V.
"The connector improves efficiency." The connector is a low-loss link. The efficiency and BOS gains come from running the system at higher voltage, and they belong to the system design, not to the connector.
"1500 V is mandatory everywhere." It is the utility-scale standard, not a code requirement for small systems.
"Any 1500 V connector fits any brand." Intermateability follows the MC4 interface, but manufacturers generally recommend matched, certified contacts. Mixing uncertified brands is how otherwise-compliant installs fail inspection.
7. Frequently Asked Questions
What does 1500 V mean for a PV connector?
It is the maximum system voltage the connector is rated to withstand continuously. Current rating is a separate number, typically 35–65 A for MC4-type connectors. A 1500 V rating is what allows longer, higher-voltage strings.
Do 1500 V connectors improve efficiency?
Not by themselves. The gain comes from the system running at higher voltage: lower current cuts I²R losses in the DC cabling and allows smaller conductors. The larger benefit by far is lower balance-of-system cost.
Are 1500 V connectors compatible with 1000 V systems?
Yes, downward. A 1500 V-rated connector can be used in a 1000 V or 600 V system. The reverse is not true and will not pass certification review.
Which standards apply to 1500 V PV connectors?
IEC 62852 for the connector and UL 6703 for North America, with cables to IEC 62930 / EN 50618 (H1Z2Z2-K) or EN 50521. Treasol's 1500 V connectors carry TÜV, UL, CE, and RoHS certification.
When should I still use 1000 V connectors?
Residential and small commercial systems with short strings. 1000 V is simpler, cheaper per connection, and avoids the stricter arc-fault and isolation requirements that come with 1500 V. At utility scale the math flips.
Are Treasol connectors 1500 V and MC4 compatible?
Yes. The CN4U-C cable connector and CN4U-P panel connector are MC4-compatible, rated 1500 V DC, IP68, and certified to TÜV, UL, CE, and RoHS.
8. Conclusion
1500 V is the utility-scale standard because longer strings and fewer components cut BOS cost, not because the connector itself saves energy. Size it where the array justifies it, verify the connector against IEC 62852 / UL 6703 with valid certification, and keep 1000 V where it remains the pragmatic choice.
For MC4-compatible 1500 V connectors rated to IP68 with TÜV/UL/CE/RoHS certification, see Treasol PV connectors or contact Treasol for project-specific selection.
