Product Identification
Product NameF4C-200-1085 Solar Fuse Connector
BrandTreasol
ModelF4C-200-1085
CategorySolar Fuse Connector
Solar Fuse Connector · Model F4C-200-1085

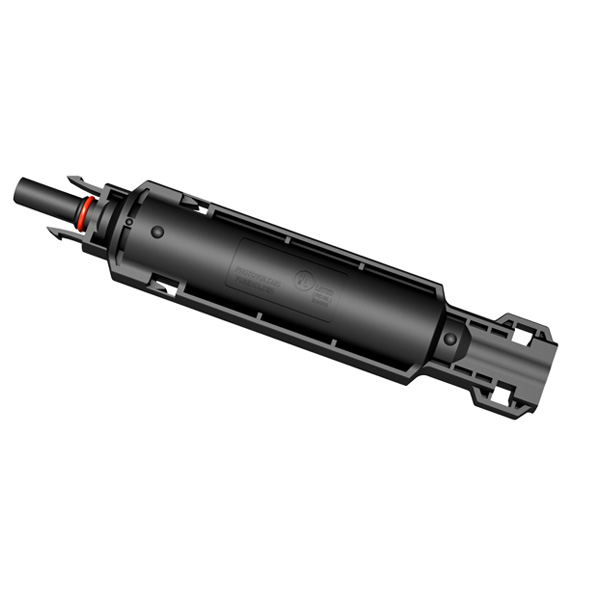

F4C-200-1085 Solar Fuse Connector
Last updated: October 2026
F4C-200-1085 is a 1500 V solar fuse connector designed for photovoltaic (PV) circuit protection and electrical connection. It supports 1–30A fuse ratings, uses a 10.3 × 85 mm fuse specification, and features IP68 protection for outdoor PV applications. The connector supports 12/10/8 AWG and 4.0/6.0/10.0 mm² solar cables.
1500 V DC
30 A
IP68
<0.5 mΩ
10 mm²
-40 °C to +85 °C
BrandTreasol
ModelF4C-200-1085
Product TypeSolar Fuse Connector
F4C-200-1085 Solar Fuse Connector at a glance
What is the F4C-200-1085 Solar Fuse Connector?
F4C-200-1085 is a 1500 V solar fuse connector designed for photovoltaic (PV) circuit protection and electrical connection. It supports 1–30A fuse ratings, uses a 10.3 × 85 mm fuse specification, and features IP68 protection for outdoor PV applications. The connector supports 12/10/8 AWG and 4.0/6.0/10.0 mm² solar cables.
Voltage1500 V DC
Current30 A
ProtectionIP68
Cable Range10 mm²
Product Overview
About the F4C-200-1085 Solar Fuse Connector
F4C-200-1085 solar fuse connector for PV circuit protection: 1500 V, 1–30 A fuses, IP68, 10.3×85 mm fuse size. Request a quote.
F4C-200-1085 Solar Fuse Connector
F4C-200-1085 is designed for photovoltaic systems where a fuse is required within the PV electrical connection. The connector combines the functions of PV cable connection and fuse-based overcurrent protection in one assembly.
It is rated up to 1500 V and supports fuse ratings from 1 A to 30 A using a 10.3 × 85 mm fuse specification. The connector features IP68 protection, a copper contact with tin plating, and an operating temperature range of -40 °C to +85 °C.
F4C-200-1085 supports 12/10/8 AWG and 4.0/6.0/10.0 mm² cables, making it suitable for different PV wiring configurations in residential, commercial and utility-scale photovoltaic installations.
Technical Specifications
F4C-200-1085 Solar Fuse Connector technical data
Electrical, mechanical, material and environmental specifications for product selection and engineering review.
Rated Voltage1500 V DCPhotovoltaic DC system
Rated Current30 AMaximum rated current
ProtectionIP68Outdoor protection rating
Cable Size10 mm²Supported solar cable
Temperature-40 °C to +85 °COperating range
| Parameter | Value |
|---|---|
| Electrical | |
| Fuse Specifications | 10.3x85 |
| Rated Current | 1-30 A |
| Rated Voltage | 1500 V (TUV) 1500 V (UL) |
| Test Voltage | 12 kV (TUV50HZ, 1 min) |
| Contact Resistance | <0.5 mΩ |
| Safety Class | II |
| Materials & Cable | |
| Insulation Material | PPE |
| Contact Material | C3602, Tin plated |
| Cable Cross section | 2.5, 4.0, 6.0, 10.0mm² 14, 12, 10 , 8AWG |
| Environmental | |
| Degree Of Protection | IP 68 |
| Ambient Temperature Range | -40 °C~ +85 °C |
| Flame Class | UL 94 V-0 |
Compatibility
MC4-compatible PV connection design
F4C-200-1085 Solar Fuse Connector is designed to match commonly used photovoltaic connection systems and provide secure electrical and mechanical connections.
Connector compatibility
Model: F4C-200-1085
Product Type: Solar Fuse Connector
Compatibility Type: MC4-compatible solar cable connector
For safety and certification compliance, connectors from the same manufacturer and approved connector combinations should be used within the same PV connection system. Mixing connectors from different manufacturers should only be considered when compatibility has been verified and permitted by the applicable certification requirements.
Applications
Photovoltaic application scenarios
F4C-200-1085 Solar Fuse Connector is suitable for residential, commercial, utility-scale and compatible solar energy storage connection applications.
Residential Solar PV
Reliable cable connections for rooftop solar systems and residential photovoltaic installations.
Commercial & Industrial PV
Suitable for commercial rooftop systems and larger distributed PV installations requiring high-current connections.
Utility-Scale Solar Power Plants
Designed for high-voltage PV systems and large-scale solar installations where reliable outdoor connections are essential.
Solar Energy Storage
Can be used in compatible solar energy and energy storage connection applications according to system requirements.
Certifications
F4C-200-1085 Solar Fuse Connector product certifications
Certification information associated with the F4C-200-1085 Solar Fuse Connector product.
TÜV
TUV Certificate For Solar Fuse Connector
UL
FUSEHOLDERS, PHOTOVOLTAIC
