Branch Connector Series-2
Last updated: October 2026
Branch Connector Series-2 is a 1500 V solar branch connector designed for combining and distributing PV circuits in photovoltaic systems. With a maximum output current of 60 A, IP68 protection and contact resistance below 0.5 mΩ, it supports 2F/M to 6F/M configurations for flexible solar PV connection layouts.
1500 V DC
60 A
IP68
<0.5 mΩ
-40 °C to +85 °C
BrandTreasol
ModelBranch Connector Series-2
Product TypeSolar Branch connector
Branch Connector Series-2 at a glance
What is the Branch Connector Series-2?
Branch Connector Series-2 is a 1500 V solar branch connector designed for combining and distributing PV circuits in photovoltaic systems. With a maximum output current of 60 A, IP68 protection and contact resistance below 0.5 mΩ, it supports 2F/M to 6F/M configurations for flexible solar PV connection layouts.
Voltage1500 V DC
Current60 A
ProtectionIP68
Product Overview
About the Branch Connector Series-2
Branch Connector Series-2 for PV systems: 1500 V, 60 A, IP68, low contact resistance. Available in 2F/M to 6F/M configurations. Request a quote.
Branch Connector Series-2
Branch Connector Series-2 is designed for photovoltaic systems where multiple PV circuits need to be combined or distributed through a compact and reliable connection point.
With a rated voltage of 1500 V TÜV / 1500 V UL and a maximum output current of 60 A, the connector is suitable for high-voltage PV applications. Its IP68 protection and operating temperature range of -40 °C to +85 °C make it suitable for outdoor solar installations.

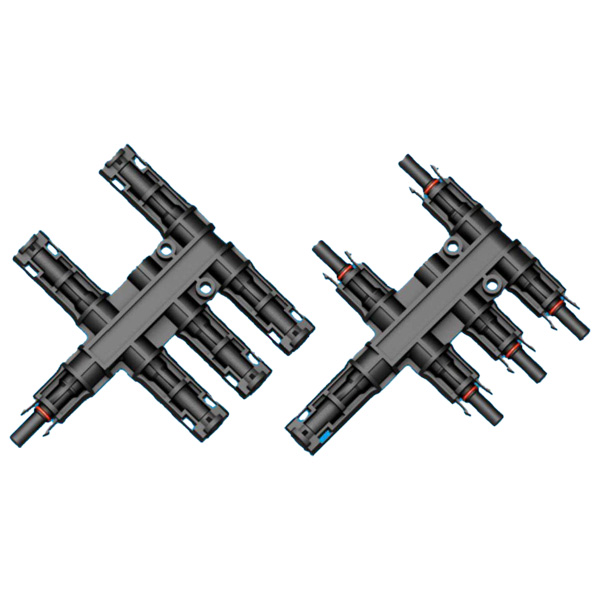

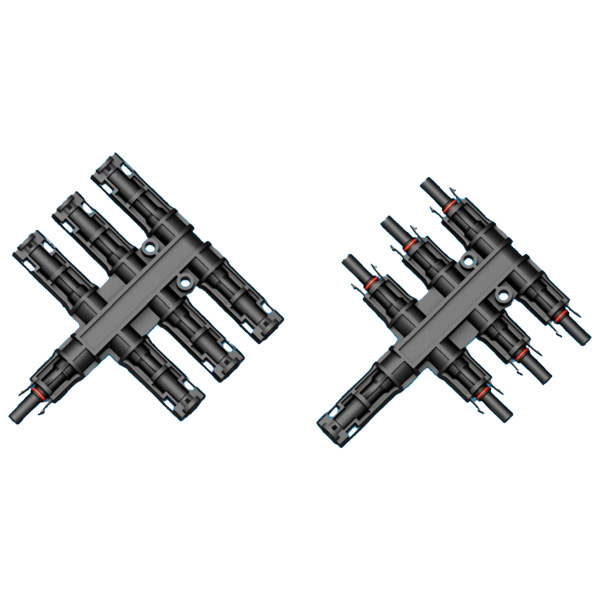

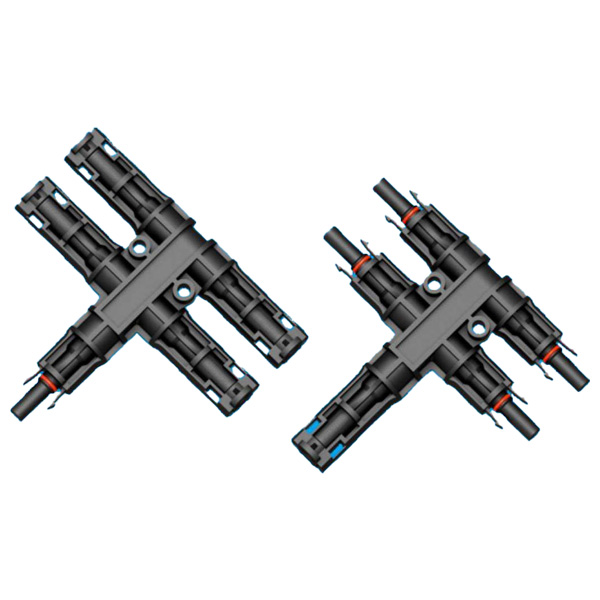

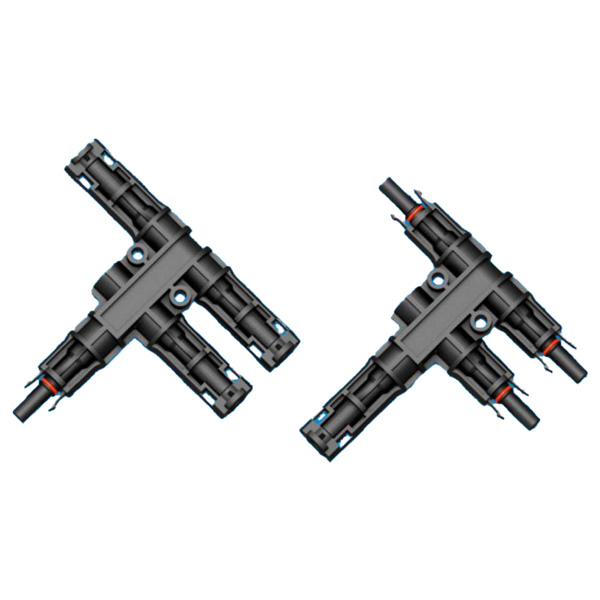

The Series-2 is available in 2F/M, 3F/M, 4F/M, 5F/M and 6F/M configurations, allowing different connection arrangements to be selected according to the PV system design.
Technical Specifications
Branch Connector Series-2 technical data
Electrical, mechanical, material and environmental specifications for product selection and engineering review.
Rated Voltage1500 V DCPhotovoltaic DC system
Rated Current60 AMaximum rated current
ProtectionIP68Outdoor protection rating
Temperature-40 °C to +85 °COperating range
| Parameter | Value |
|---|---|
| Electrical | |
| Rated Current | OUTPUT Max 60 A |
| Rated Voltage | 1500 V (TUV) 1500 V (UL) |
| Test Voltage | 12 kV (TUV50HZ, 1 min) |
| Contact Resistance | <0.5 mΩ |
| Safety Class | II |
| Modeling Options | Bn4x-2F/M / Bn4x-3F/M / Bn4x-4F/M / Bn4x-5F/M / Bn4x-6F/M |
| Materials & Cable | |
| Insulation Material | PPE |
| Environmental | |
| Degree Of Protection | IP 68 |
| Ambient Temperature Range | -40 °C~ +85 °C |
| Flame Class | UL 94 V-0 |
Compatibility
MC4-compatible PV connection design
Branch Connector Series-2 is designed to match commonly used photovoltaic connection systems and provide secure electrical and mechanical connections.
Connector compatibility
Model: Branch Connector Series-2
Product Type: Solar Branch connector
Compatibility Type: MC4-compatible solar cable connector
For safety and certification compliance, connectors from the same manufacturer and approved connector combinations should be used within the same PV connection system. Mixing connectors from different manufacturers should only be considered when compatibility has been verified and permitted by the applicable certification requirements.
